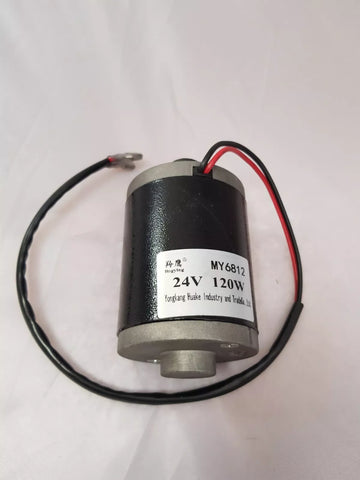

ES066 DC Electric E Scooter Motor 24v 120w 16T Belt ZY6812 MY6812 24 Volt
Product code:
Product Code: ES066
Specifications:
- 24 volt 120 watt output brushed electric motor for electric scooters and E bikes

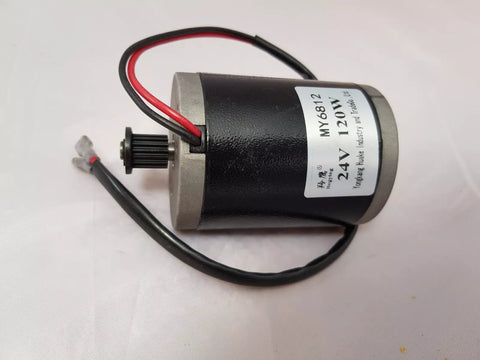

- Incorporates a 16T belt drive sprocket
- Model: MY6812
- The drive is clockwise. It can operate in forward or reverse
- 2 Wire Connection - 1 x Black, 1 x Red
-
Voltage: 24 v
Wattage: 120 w
Number of Teeth: 16
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 35.6 mm / 1.4 inches
Wiring Length (approx.): 450 mm / 17.72 inches
Drive Type: Belt
Belt Size: 3M
Diameter of Fixing Hole(s): 4.2 mm / 0.17 inches
Barrel Diameter: 68 mm / 2.68 inches
Barrel Length: 89.15 mm / 3.51 inches
Brushed or Brushless?: Brushed
Model Number: MY6812
Shaft Diameter: 8 mm / 0.31 inches
Overall Length: 121.7 mm / 4.79 inches
Thread Diameter: 15 mm / 0.59 inches
